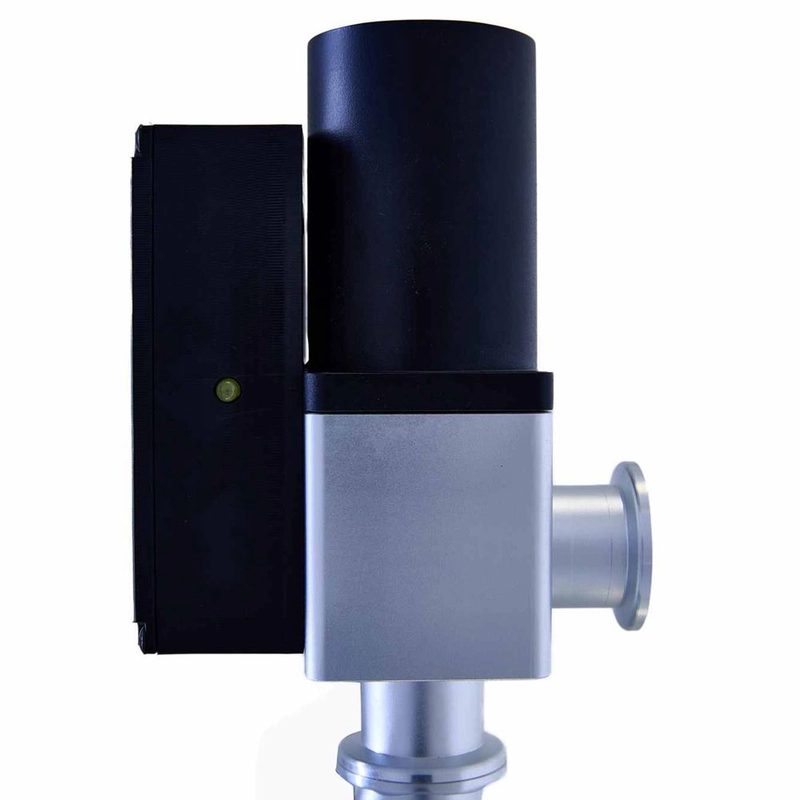

The high vacuum electromagnetic angle valves are often used in applications to isolate gas flow in the vacuum system. It use the electromagnetic force that is generated by the coil as the power to drive the valve plate to open and close. The shaft seal is a stainless steel bellows. It has long life cycles and good sealing. The applicable working condition is air or non-corrosive gas.
Pressure range
1.2 x105 Pa to 1 x10-6 Pa
Valve body leakage rage
less than 1x10-8 Pa.L/s
Voltage
AC 220V/50Hz
Valve body
SS304 or Al alloy
Shaft sealing components
bellows
Medium temperature
-30 Degree Celsius to +150 Degree Celsius
Port of shipping
China
Tianjin Port
