Small 4 Axis CNC Milling Machine
Product price
Price upon request
Payment and shipping information
Payment method Swift transfer
Trading areas Domestic market, International market
Shipping informationEXW, FCA, FAS, FOB, DDP, DAP, DPU, CFR/CIF

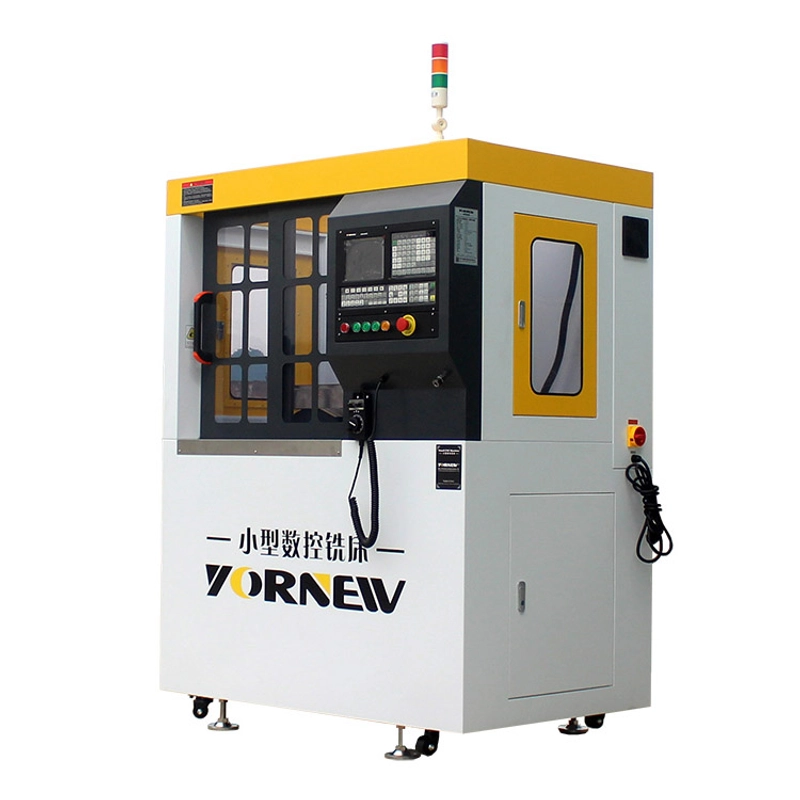

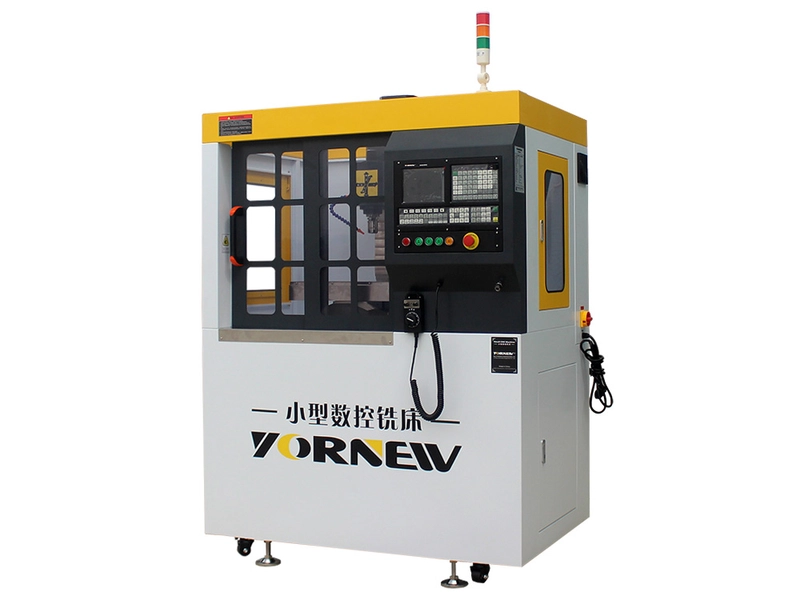

Small 4 Axis CNC Milling Machine
Yornew Automation Equipment Co., Ltd.
Product details
The XK300A Small 4 Axis CNC Milling Machine is a mini CNC milling, easy to operate, very stable.With high performance 4 axis milling CNC controlle,support multi language interface display,the standard spec includes MPG hand wheel.Selection of high -quality casting materials,High-precision linear guide and ballscrews,semi-automatic lubrication system, with totally enclosed high visibility interlocking guard,Standard spec XYZ axis is stepper motor, option AC servo motor.With the option of automatic aligning instrument and 4th axis (adopt harmonic reducer).Ideal for cutting a range of resistant materials such as wax, plastic, acrylic, free cutting alloys,aluminium and steel..Suitable for technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Product origin China
Production capacity 100 Piece / Yearly
BrandYORNEW
Specification
X axis travel
310mm
Y axis travel
180mm
Z axis travel
290mm
A axis Rotate
360(optional)
Table size
550*180mm
Spindle taper
BT30
Tool DIA. range
4-16mm
Repeatability accuracy
0.01mm
Spindle motor
1.5KW(2.2KW optional)
The max moving speed
8000mm/min
Power of X/Y/Z
Servo motor 750W
Guide rail
High-precision linear guide
Power
230/120V
Weight(NW/GW)
600/650kg
Overall dimension
1360*990*1800mm
Packing size
1400*1050*2000mm
Contact supplier
