Root PhenoRack - Large

Product details

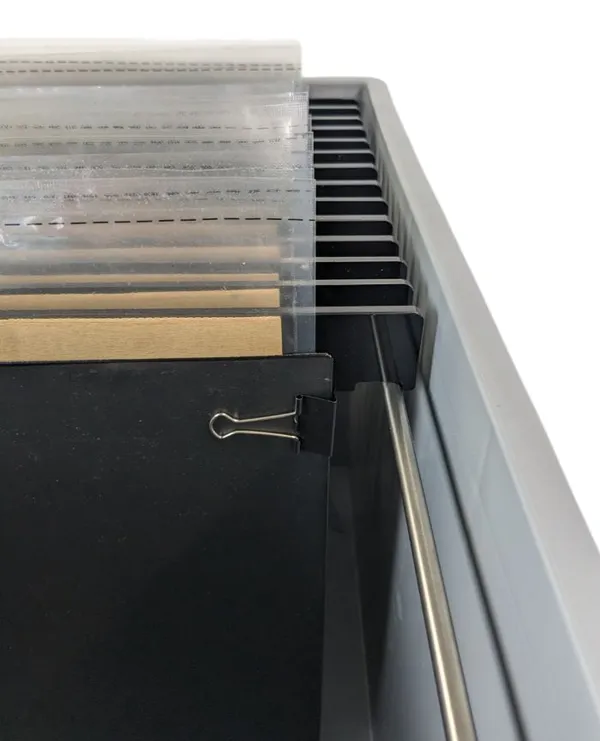

The Root Phenotyping Set contains 30 Pouch Positioning Panels (depending on size) in a matched storage container (PE) equipped with a stainless steel rail system (PhenoRacks) for root phenotyping on germination papers Germination paper pouches can be placed on one or both sides of the central acrylic (black, 4 mm PMMA) Positioning Panels. Shading panels (1 mm PMMA, black) fit snugly over the outer surfaces of the pouches; they are slightly narrower to avoid tension at the sides and shorter to adjust to the height to the seed position. Two systems can be used to attach the Pouches & Shading Panels to the Positioning System, "rubber bands" or office binder clips. The Positioning Plates have a special zig-zag pattern on the top to hold the rubber bands securely in place. When hanging, the Positioning Plates are spaced ~1 cm apart. Germination paper can either be tapped into the water/nutrient solution at the bottom of the PhenoRack, or if closed plastic sleeves are used, a small amount of water/nutrient solution can be stored at the bottom of each plastic sleeve The Set (suitable for e.g. 10 x 15 inch germination paper) contains: 1x Storage Container (ID: 57 x 37 x 41.5 cm, LxWxH; light grey, PE) 2x Rails (stainless steel, 8 mm; mounted on L side) 30x Pouch Positioning Panels (Body area: 29 cm width, 38 cm height; with hooks for rail sytem) 60x Light Shielding Panels (28x34 cm) Consumables such as rubber bands/office binders, germination paper, and plastic envelopes are not included. Please contact us for assistance in obtaining supplies and advice on the use of Growth Pouch Root Phenotyping Systems.
