Post Tension Anchor Bridge Anchorage Wedges For PC Strand For 12.7/15.7mm Prestressing Bonded Strands Wedges Grips

Product details

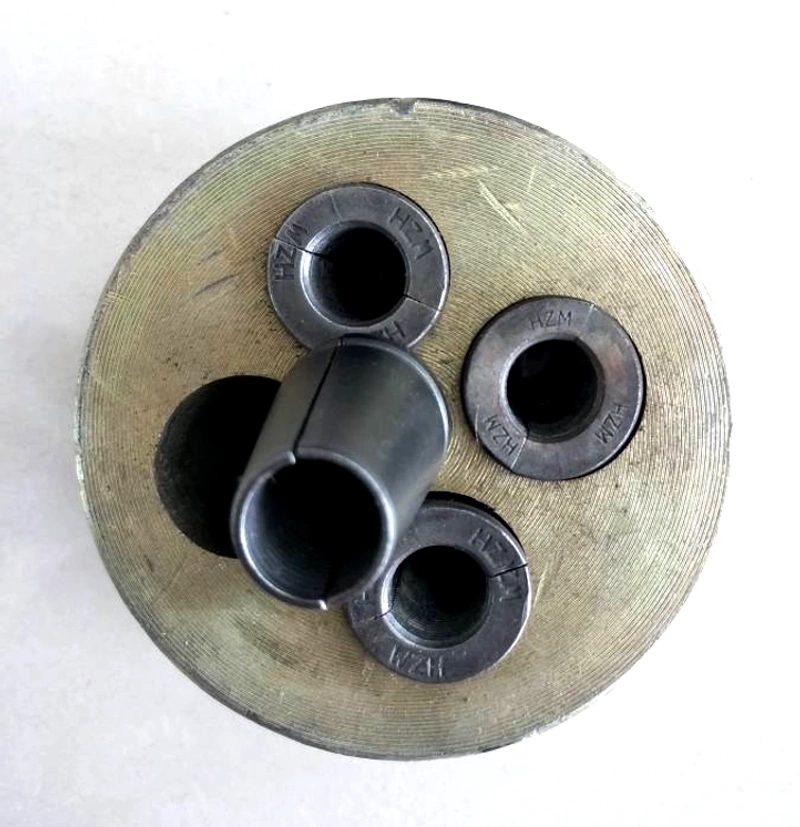

Definition of Parts: The anchor head is the key part of bearing the prestressing tension. The round anchor head is made from 45# high-quality carbon construction steel, and the flat anchorage is made from 40Cr steel. The anchor head includes round anchor head and flat anchor head. The wedge is the key part of the anchor system, which is made from high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip. The system applies to the two-chip YJM15 series, which can be used for round anchorage, flat anchorage, but also for porous couplers. Production Process: 1. Raw Materials 2.1. Raw Materials 3. Holes Cone Shaped Drilling 4. Holes Fine Turning 5. Peeling 6. Chamfering 7. Deburring & Chamfering 8. Quality Checking 9. Static Loading Test 10. Paper Box 11. Woodcase 12. Ready for shipping. The YJM System consists of stress-end anchor, fixed-end anchor, anchor coupler, and corrugated pipe. It can be divided into YJM13, YJM15, YJM18 series of round anchors and BM13, BM15 series of flat anchors. We also have high-strength steel wire YJM5, YJM7 series anchors. Technical data: Prestressed Concrete Post Tensioning PC Steel Wire PT Anchor Wedges: 1. YM15 applies to 15.2/15.24mm, 15.7mm PC strand. 2. YM13 applies to 12.7mm, 12.5mm & 12.9mm PC strand. 3. YM18 applies to 17.8mm PC strand. 4. YM22 applies to 21.6/21.8mm PC strand. 5. YM11 applies to 10.8mm PC strand. 6. YM10 applies to 9.3mm, 9.53mm PC strand. 7. YM7, YM6, YM5 apply to 7.0mm, 6.0mm, 5.0mm spiral ribbed PC wire. Application: Prestressed Concrete Post Tensioning PC Steel Wire PT Anchor Wedges. The Prestressed Anchor system is a complete, independent building measure researched and widely adopted by modern construction. It is especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings, and channel construction, etc. It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials.
