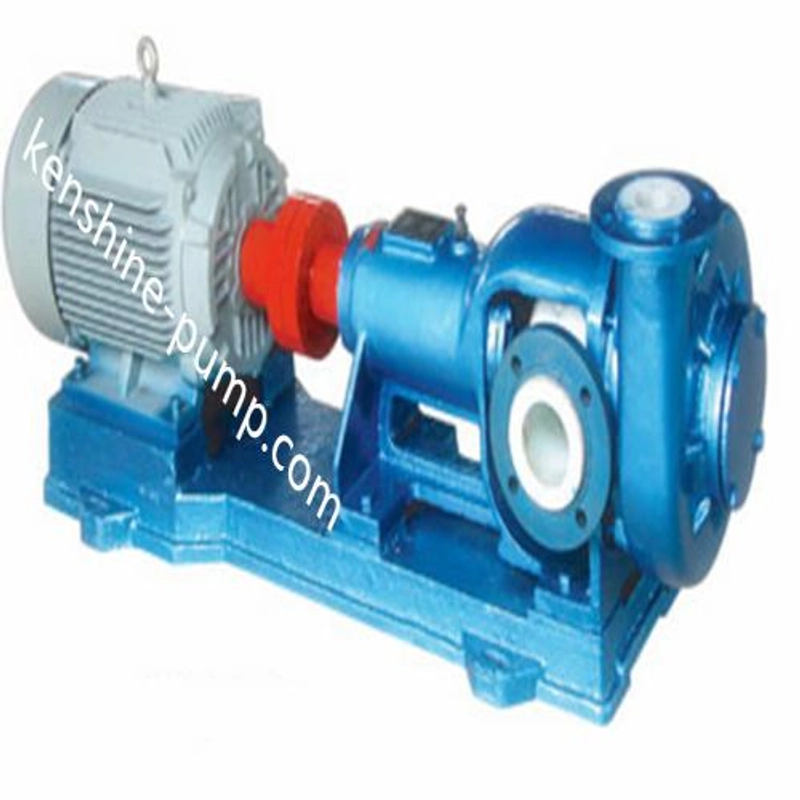

HFM Back Suction Corrosion Resistant Press Filter Feeding Pump

Product details

HFM series back suction corrosion and wear resistant pressure filter pump has the unique structure. The sealing life is 2 to 3 times as the similar pumps, especially with pressure conveying condition(filter press equipment or with pressure spray circulation pump). The advantage of sealing is particularly obvious. Under high pressure conditions, the wear resistance is better than the conventional pump. Because of the two-stage pressure, the impeller linear velocity of the slurry pump is between 22 to 28 m/s, so the outlet pressure of 0.8 to 1MPa can be obtained, while the impeller linear velocity of the single-stage slurry pump is around 35 to 40 m/s, so the outlet pressure of 0.8 to 1MPa can be obtained. The linear velocity of the impeller decreases, and the wear resistance increases geometrically under the same working condition. The pump is widely used for non-ferrous smelting, environmental protection, chemical, titanium dioxide, non-metal processing and other industries. HFM corrosion resistant press filter pump is Suitable for conveying corrosive liquid or slurry within 100degree celsius. scope of application 1. This series of pump can transport all kinds of corrosive liquid within 100 degree celsius and non corrosive liquid and slurry or used for all kinds of filter press pressure feeding pump, such as: non-ferrous metal zinc, copper, cobalt, nickel, manganese and other wet smelting technology with pressure filter of pump or process pumps, mining mineral processing, non-metallic mineral processing (such as titanium dioxide, kaolin) process of the slurry pump, sludge, waste residue pump in the environmental protection industry, other chemical industry, dye, pharmacy, food production technology of pressure filtration pump or pump pressure. 2. Long term pressure operation (high outlet pressure) to transport corrosive media, such as flue gas desulfurization, air treatment in the pressure spray pump, pressure flushing pump, etc. 3. Used for the condition where other pumps convey medium and is easy to leak. 4. The pump has two series of single stage and double stage, which can meet the needs of small flow and high pressure transport corrosive slurry . HFM pump is not applicable to the condition: the suction inlet liquid level is less than 0.5m or the negative pressure in suction inlet is too large.
