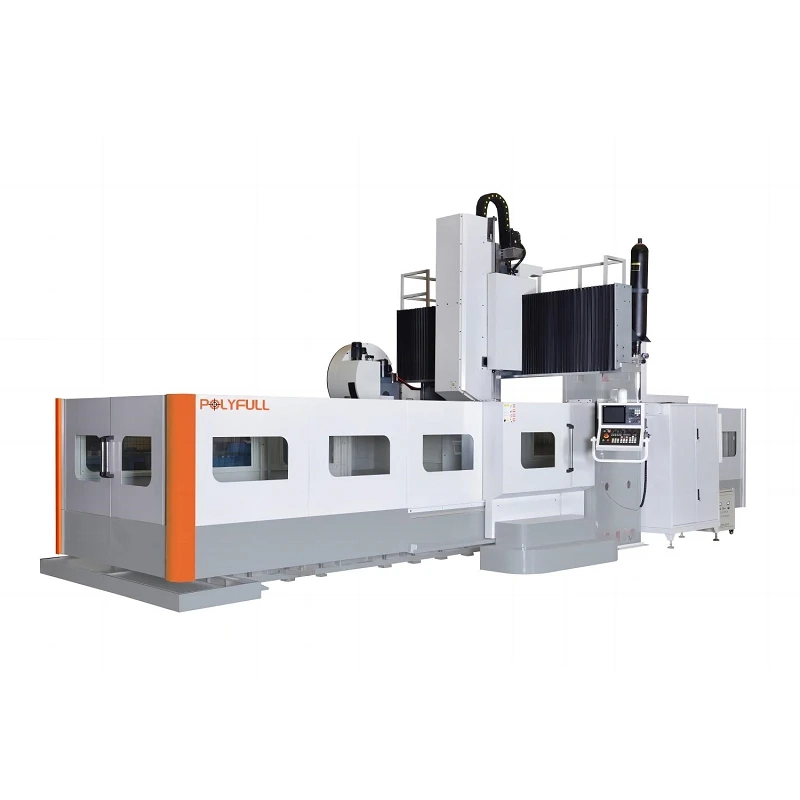

Gantry 5 Axis CNC Machine

Product price
Price upon request
Payment and shipping information
Gantry 5 Axis CNC Machine

Dalian Polyfull Intelligence Technology Co.,Ltd.
Product details

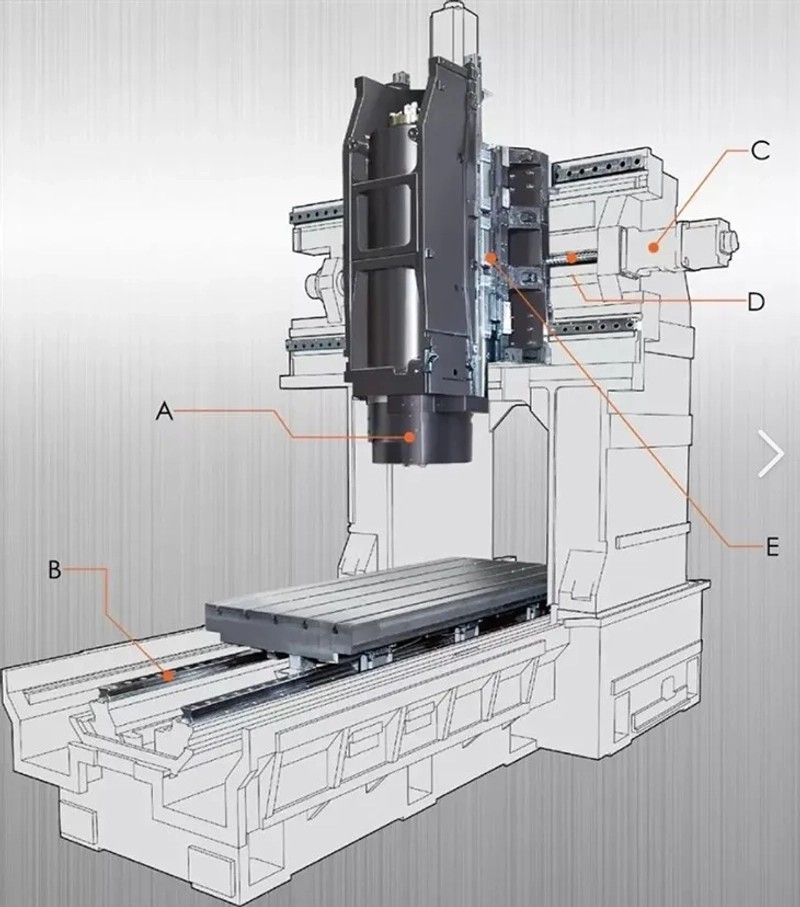

1. Large parts such as the bed, worktable, columns, beams, slide seats, and rams (spindle box) are all made of high-quality cast iron. 2. After aging treatment, FEM finite element analysis and design were adopted to obtain the highest rigidity. 3. The Gantry 5 Axis CNC Machine bed is a closed box structure with reinforced ribs and reasonably distributed multi-point supports so that the machine tool has sufficient rigidity. 4. High rigidity, high stability. 5. Ladder-type and high-rigidity beam. 6. The X/Y axis adopts linear guideways, and the Z-axis adopts the box guideway. 7. Direct-type spindle is 8000rpm. Application Areas. 1. Gantry 5 Axis CNC Machine: used in various mechanical processing, sheet metal contour cutting, profile processing, parts assembly, etc., which is of great help to the production of mechanical products. 2. Electronic industry: used in the production and manufacturing of various boards, transformers, iron cores, etc. 3. Automobile manufacturing: used in processing, welding, drilling, and other aspects of various automobile engine parts 4. Medical equipment: used in the production of various medical equipment, such as spinal braces, prostheses, surgical instruments, etc. Standard Configuration. 1. Spindle oil cooling. 2. Small cantilever operating box, surrounded by protection. 3. Standard screw nut cooling for medium and high speeds. 4. Square ram comes standard with dual drive and hydraulic unclamping.
