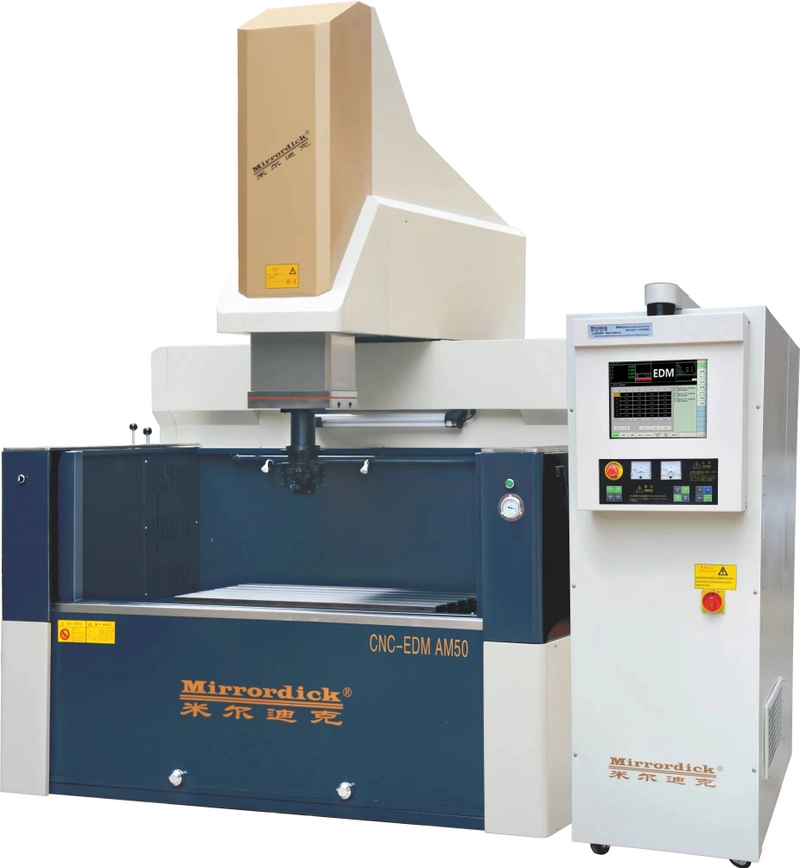

The EDM has the function of processing mirror of surface,carbide,graphite and most cost-effective Positioning accuracy(JIS standard): - 5micrometer/Arbitrarily 300mm. Max.productivity: Copper-steel 500 cubic mm/min Graphite-steel 1030 cubic mm/min
Model NO.
AR50
Process Usage
Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.002mm
Condition
New
Overall size(L*W*H)
2100x2000x2400 mm
Liquid tank internal size(L*W*H)
870*620*350mm
Worktable size (L*W)
700*450mm
X,Y,Z axis travel
500*400*300mm
Max.and Min.distance from worktable surface to electrode plate
200-500mm
Max. electrode weight
50kg
Best surface roughness
Ra0.001mm
Machine weight
4200kg
Port of shipping
China
Shenzhen Port
